Vegas250rr Posted February 1, 2009 Share Posted February 1, 2009 Alright for those of you that have these lights I have a question.... would someone try to fire them with a ATC 70. I have an idea but I am not sure it will pan out, and the 70 being able to run them is the key. I think that at a rev the light will fire , you just need to keep the revs up till the like is up to temp. and then you should be able to let off the throttle. should this experiment work, I will take my idea further! thanks for the help! Quote Link to comment Share on other sites More sharing options...
CaptNkllm Posted February 1, 2009 Share Posted February 1, 2009 http://kbrowncustoms.bigcartel.com/product/hid-power-cell Try that.. maybe it will work for you CApt Quote Link to comment Share on other sites More sharing options...
Vegas250rr Posted February 1, 2009 Author Share Posted February 1, 2009 (edited) http://kbrowncustoms.bigcartel.com/product/hid-power-cell Try that.. maybe it will work for you CApt I have two problems with that.... I dont currently own a 70 to try it with, and I am trying to get around the cell. you guys with the Estart Lifans on your 70s wont have any issues, but my idea is for ALL 70s stock or not Edited February 1, 2009 by Vegas250rr Quote Link to comment Share on other sites More sharing options...
RUn2it Posted February 1, 2009 Share Posted February 1, 2009 Alright for those of you that have these lights I have a question.... would someone try to fire them with a ATC 70. I have an idea but I am not sure it will pan out, and the 70 being able to run them is the key. I think that at a rev the light will fire , you just need to keep the revs up till the like is up to temp. and then you should be able to let off the throttle. should this experiment work, I will take my idea further! thanks for the help! You MUST have 12DC power, all atvs, quads and bikes have stators and all stators are AC, all auto Alternators are AC, hence the name, or they would be generators (DC). A rechargeable battery pack or cell or install a full wave bridge rectifier/regulator and battery. No magic wands. When I put an HID on my LT 500 I had plenty of power with super sized light coils I made but had to add the rectifier/regulator and battery. Quote Link to comment Share on other sites More sharing options...
vegas style Posted February 2, 2009 Share Posted February 2, 2009 i run one on my 04 450r honda kick start no battery. run it off the high beam circuit. no problem so far with almost a years worth of dune night rides. Quote Link to comment Share on other sites More sharing options...
Vegas250rr Posted February 3, 2009 Author Share Posted February 3, 2009 bump for experimenters? Quote Link to comment Share on other sites More sharing options...
RUn2it Posted February 3, 2009 Share Posted February 3, 2009 i run one on my 04 450r honda kick start no battery. run it off the high beam circuit. no problem so far with almost a years worth of dune night rides. You run a HID High Intensity Discharge light that has a ballast and igniter on AC power? Quote Link to comment Share on other sites More sharing options...

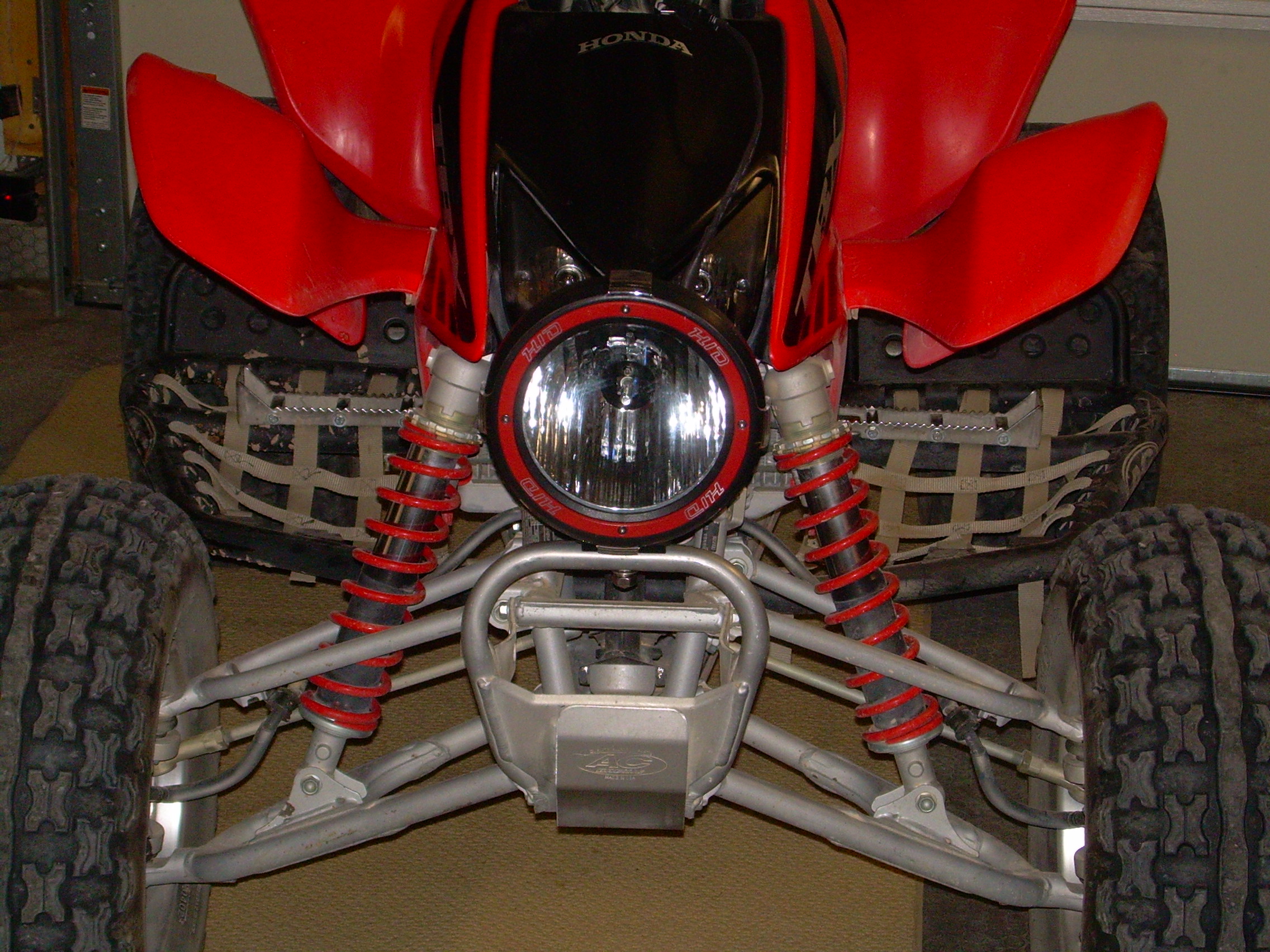

vegas style Posted February 3, 2009 Share Posted February 3, 2009 You run a HID High Intensity Discharge light that has a ballast and igniter on AC power? yep i run a checker auto $!00 7" hid on my 04 honda 450r kick start no battery. i have it wired into the high beam circuit no real flicker very bright puts all the stock quad lights to shame. have posted the pic several time here it is again. Quote Link to comment Share on other sites More sharing options...

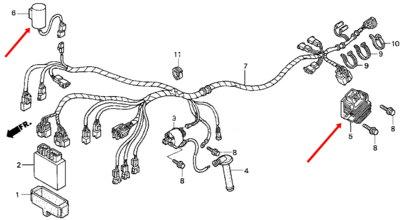

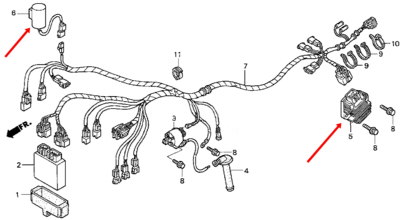

RUn2it Posted February 3, 2009 Share Posted February 3, 2009 yep i run a checker auto $!00 7" hid on my 04 honda 450r kick start no battery. i have it wired into the high beam circuit no real flicker very bright puts all the stock quad lights to shame. have posted the pic several time here it is again. I looked your quad up and it has a rectifier/regulator and a capacitor which takes the place of a battery. Without these it would fry. Too bad all quads don't have these. Quote Link to comment Share on other sites More sharing options...
Vegas250rr Posted February 4, 2009 Author Share Posted February 4, 2009 I looked your quad up and it has a rectifier/regulator and a capacitor which takes the place of a battery. Without these it would fry. Too bad all quads don't have these. this is true... but ... I have seen lots of lights on the front of 70s... so I know someone on here has to have one! Quote Link to comment Share on other sites More sharing options...
Vegas250rr Posted February 4, 2009 Author Share Posted February 4, 2009 yep i run a checker auto $!00 7" hid on my 04 honda 450r kick start no battery. i have it wired into the high beam circuit no real flicker very bright puts all the stock quad lights to shame. have posted the pic several time here it is again. how good is this light for peripheral vision? Quote Link to comment Share on other sites More sharing options...
vegas style Posted February 4, 2009 Share Posted February 4, 2009 for me its great i put it on at night and take it off in the morning. it has a huge oval beam. Quote Link to comment Share on other sites More sharing options...
RUn2it Posted February 4, 2009 Share Posted February 4, 2009 this is true... but ... I have seen lots of lights on the front of 70s... so I know someone on here has to have one! Halogen will work with AC or DC but HID is DC ONLY. Read your documentation for your light, it will say reverse polarity will damage the electronics and void warrantee, plus you'll ruin your chances of having a fan club when people destroy their HIDs Quote Link to comment Share on other sites More sharing options...
vegas style Posted February 4, 2009 Share Posted February 4, 2009 im not saying it will work on other quads or trikes :?: just saying what has worked for me. my mechanic was the one that suggested that it would work off the honda 450r electrical system. Quote Link to comment Share on other sites More sharing options...
