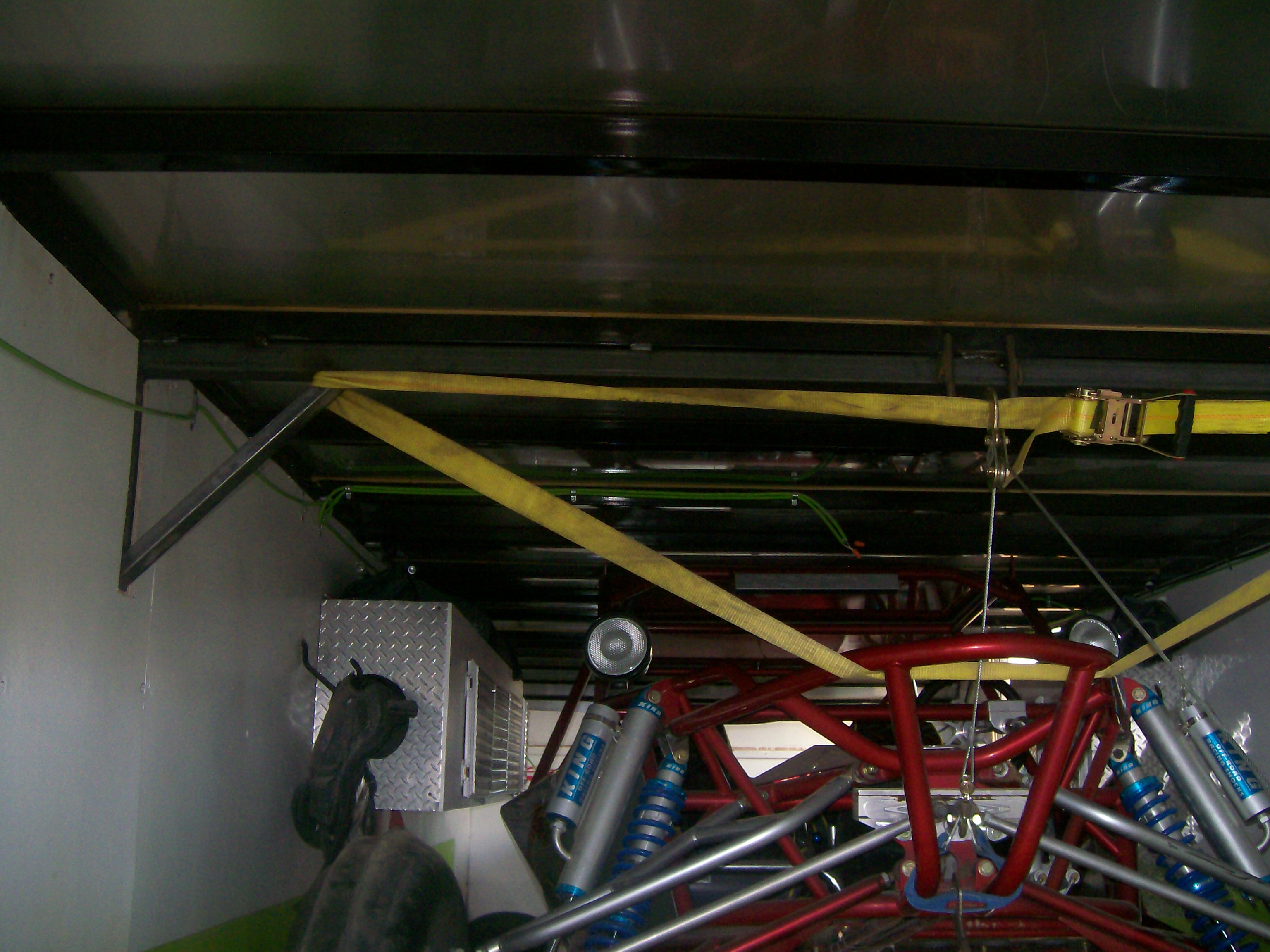

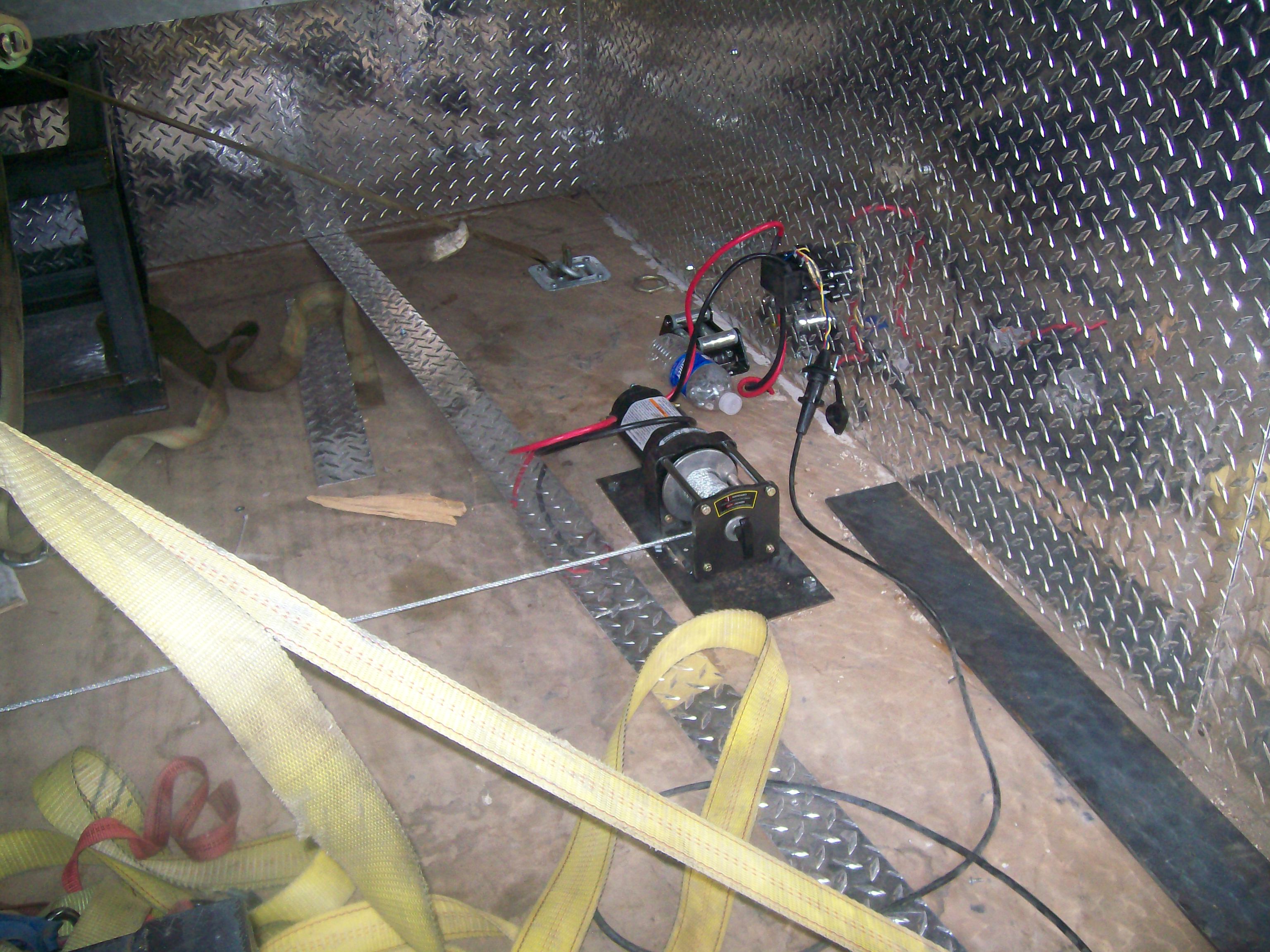

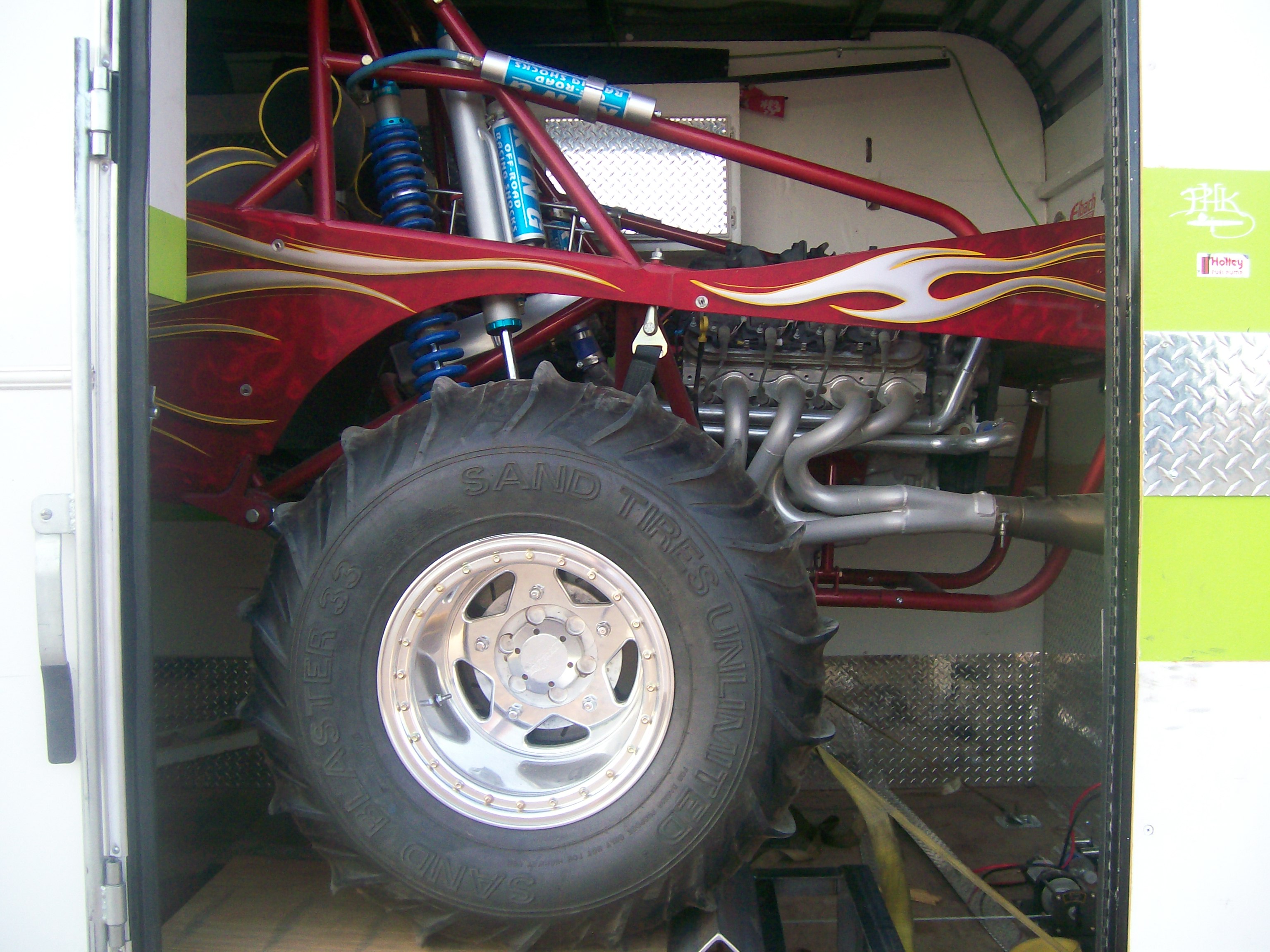

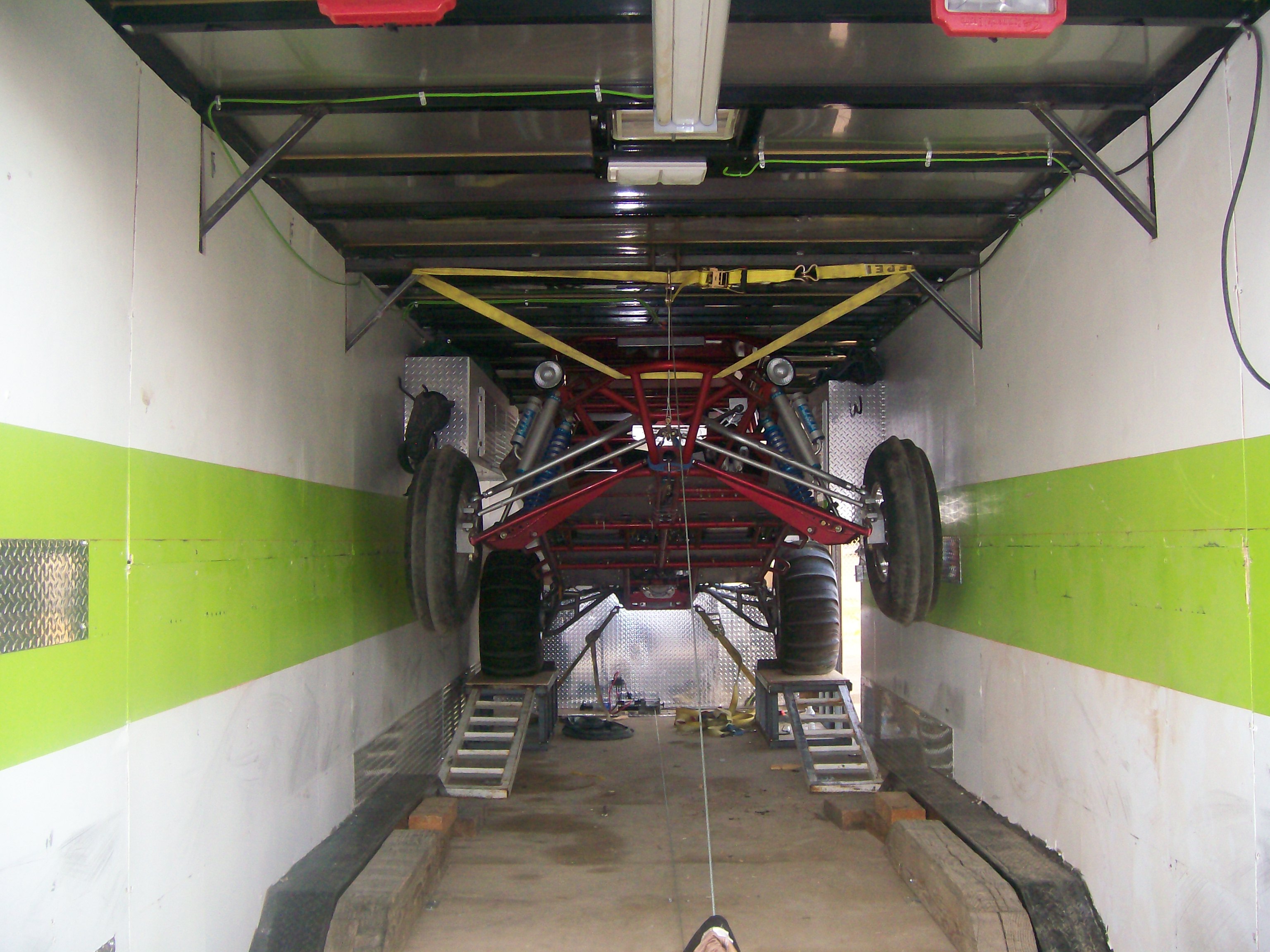

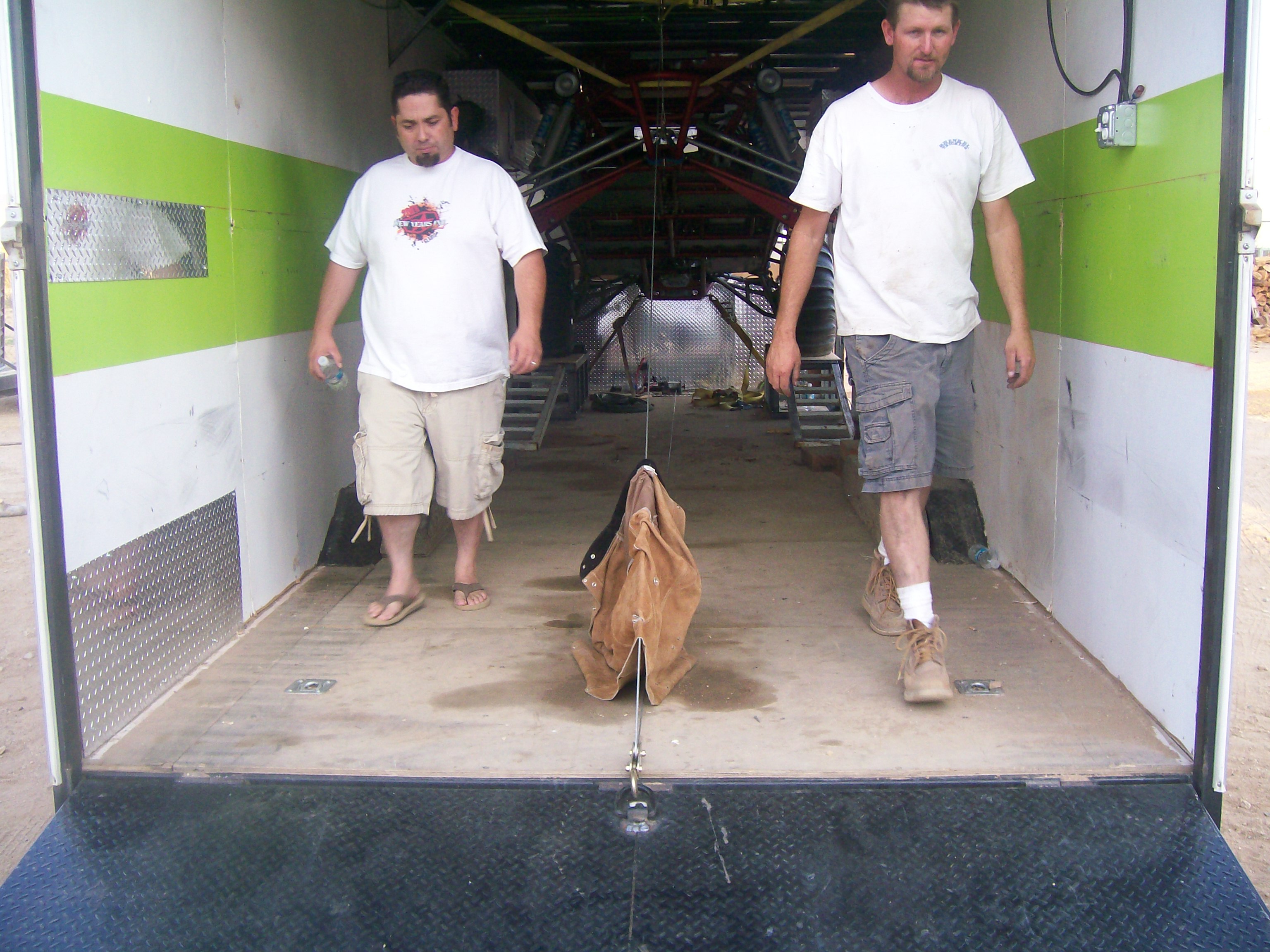

barefoot bob Posted August 25, 2008 Share Posted August 25, 2008 (edited) i have some photos of the stacker conversion were doing. semi stacker if you prefer but when were done we will be able to load 2 sand cars 16' and 16.5' and a quad in a 28' area. its not completed these are just some pics. and before you ask the yellow strap thats holding up the car is for saftey while were crawling under measuring. the car winches up. we will be using an a removeable a frame to prop the car up to keep the floor supporting all the weight. you will notice the gussets at the top of the wall. thats supporting the a frame for winching the car up. we were able to hide the a frame in the walls and put the wood back up. we already test fitted both cars and it doe work. a couple more weekends and it will be ready Edited August 25, 2008 by barefoot bob Quote Link to comment Share on other sites More sharing options...
beau Posted August 25, 2008 Share Posted August 25, 2008 Looks good Bob! Quote Link to comment Share on other sites More sharing options...
ltr450 Posted August 26, 2008 Share Posted August 26, 2008 Looks good, I would like too do something to my 26 hauler. We only got 13 feet of cargo room from the back door to the front kitchen. Would hate too get a new hauler, for only two or three additional feet Quote Link to comment Share on other sites More sharing options...
Richard Cheese Posted August 26, 2008 Share Posted August 26, 2008 looks good bob!! cant wait to see the finished product!!! Quote Link to comment Share on other sites More sharing options...
beau Posted August 27, 2008 Share Posted August 27, 2008 Looks good, I would like too do something to my 26 hauler. We only got 13 feet of cargo room from the back door to the front kitchen. Would hate too get a new hauler, for only two or three additional feet Some guys that my group was camped with one trip had some ramps made similar to Bob's but higher and fit 1 Rhino, 1 2 seat mid engine buggy, 2 adult quads and 1 kids quad in a 37 ft WW fifth wheel with I think 17 feet of cargo space. They put the kids quad in the front of the kitchen, backed the rhino in put ramps on either side of Rhino, one quad sideways in front of the Rhino, pulled buggy in front end first above quad and hood of rhino and one quad sideways behind the buggy. When they first said they were going to put all of it in the trailer I laughed and said no way possible. I was wrong... Quote Link to comment Share on other sites More sharing options...
MQUnlimited Posted August 27, 2008 Share Posted August 27, 2008 Maybe its because it isnt done but it looks alittle scary to me right now.... Quote Link to comment Share on other sites More sharing options...
dunefreak Posted August 27, 2008 Share Posted August 27, 2008 I hope she holds! Pretty genious idea Bob. Keep the prgress pics updated. I'm curious to see how the finished outcome is with both cars in there. So the front of James' car will just be hanging from the a-frame support over your car right? :ah: No ramps or anything? Quote Link to comment Share on other sites More sharing options...
Randog Posted August 27, 2008 Share Posted August 27, 2008 Crazy Mohegans. Looks like it's coming along though. Keep us posted BareFizzzleBizzzle. Yiah R- Quote Link to comment Share on other sites More sharing options...

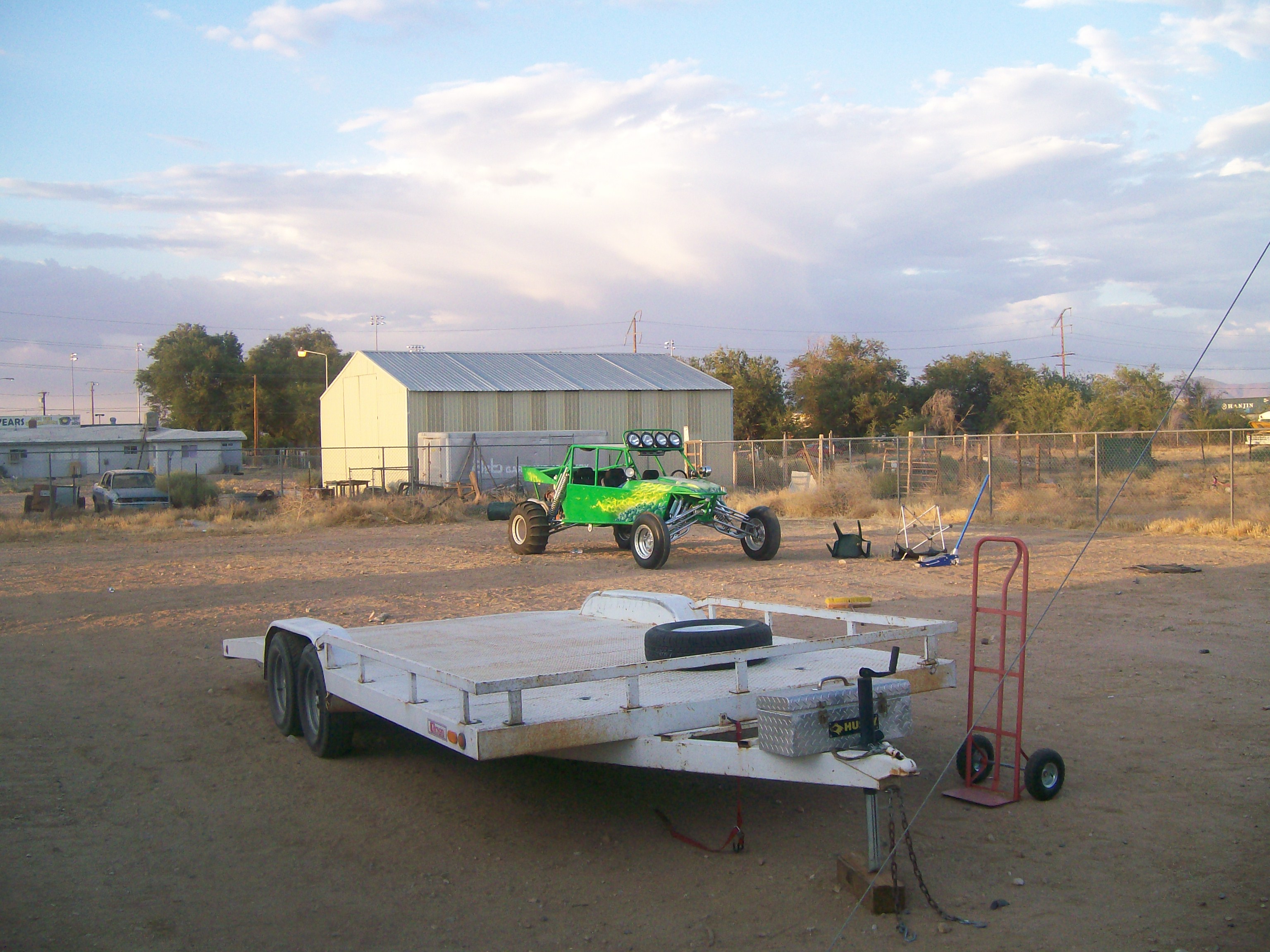

bp-guy Posted August 28, 2008 Share Posted August 28, 2008 Bob- Your car look lonely sitting in the corner of the lot with the toppled over chairs! Quote Link to comment Share on other sites More sharing options...
Warrior07 Posted August 28, 2008 Share Posted August 28, 2008 Bob- Your car look lonely sitting in the corner of the lot with the toppled over chairs! That's his collection of broken chairs from dune trips Quote Link to comment Share on other sites More sharing options...

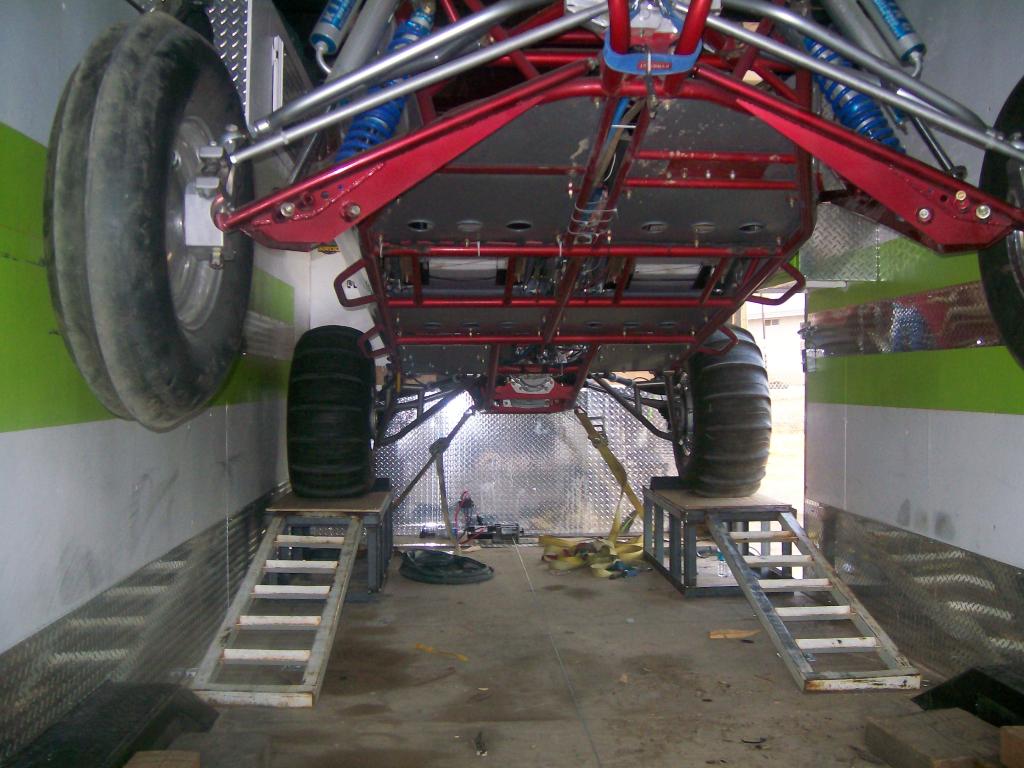

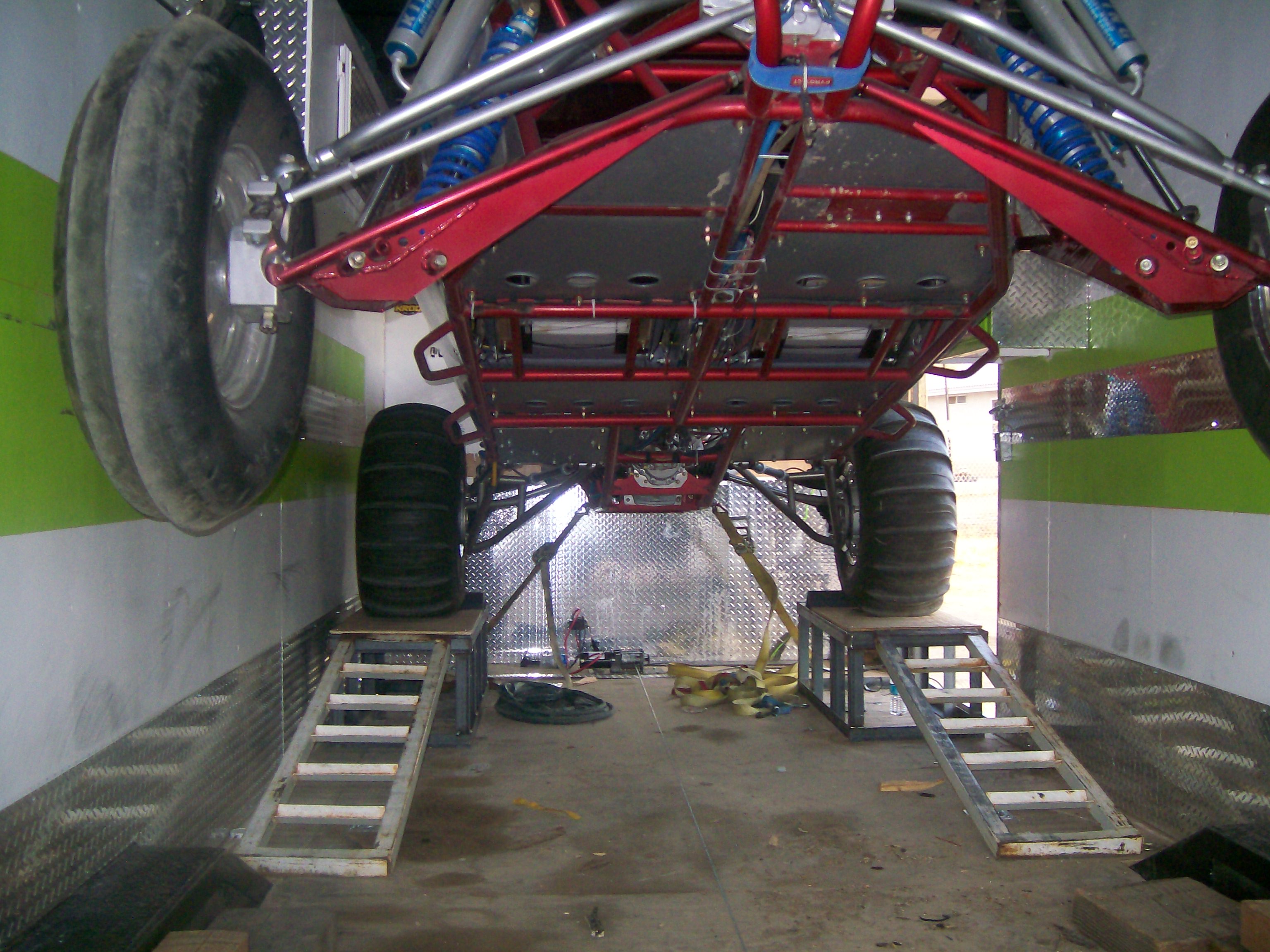

barefoot bob Posted September 2, 2008 Author Share Posted September 2, 2008 (edited) lol ya we gutted the trailer crap is everywhere. anywase. when james car is loaded it will not be supported by anything on the roof or the walls. it will be held at the floor. the A frame is for simply lifting the car up. once lifted and a saftey strap hooked to the a frame we will bolt in a unit simaler to a saw horse mounted to the steel on the floor. under the frame rails of the buggy. the only thing the a frame will support is abot 3 inches of droop from the A arms on the car by simply strapping them up. all the weight and tie downs are from the floor. the ramps in the rear are 2 fold. 1 to keep the car from harming mine in case of a flat. and 2 we can put a quad under james buggy. this set up cost about 400 dollars and will save roughly 800 to a thousand dollars a season. elimination of a third vehicle , fuel entrance fees ect......... Edited September 2, 2008 by barefoot bob Quote Link to comment Share on other sites More sharing options...
MQUnlimited Posted September 2, 2008 Share Posted September 2, 2008 this set up cost about 400 dollars and will save roughly 800 to a thousand dollars a season. elimination of a third vehicle , fuel entrance fees ect......... Just that right there is a good reason! Nice job. Quote Link to comment Share on other sites More sharing options...
